Turnaround time – 11 Production DaysGenerally designed from an iJIG – 7 Lab Days and/or Printed Try-In – 7 Lab Days

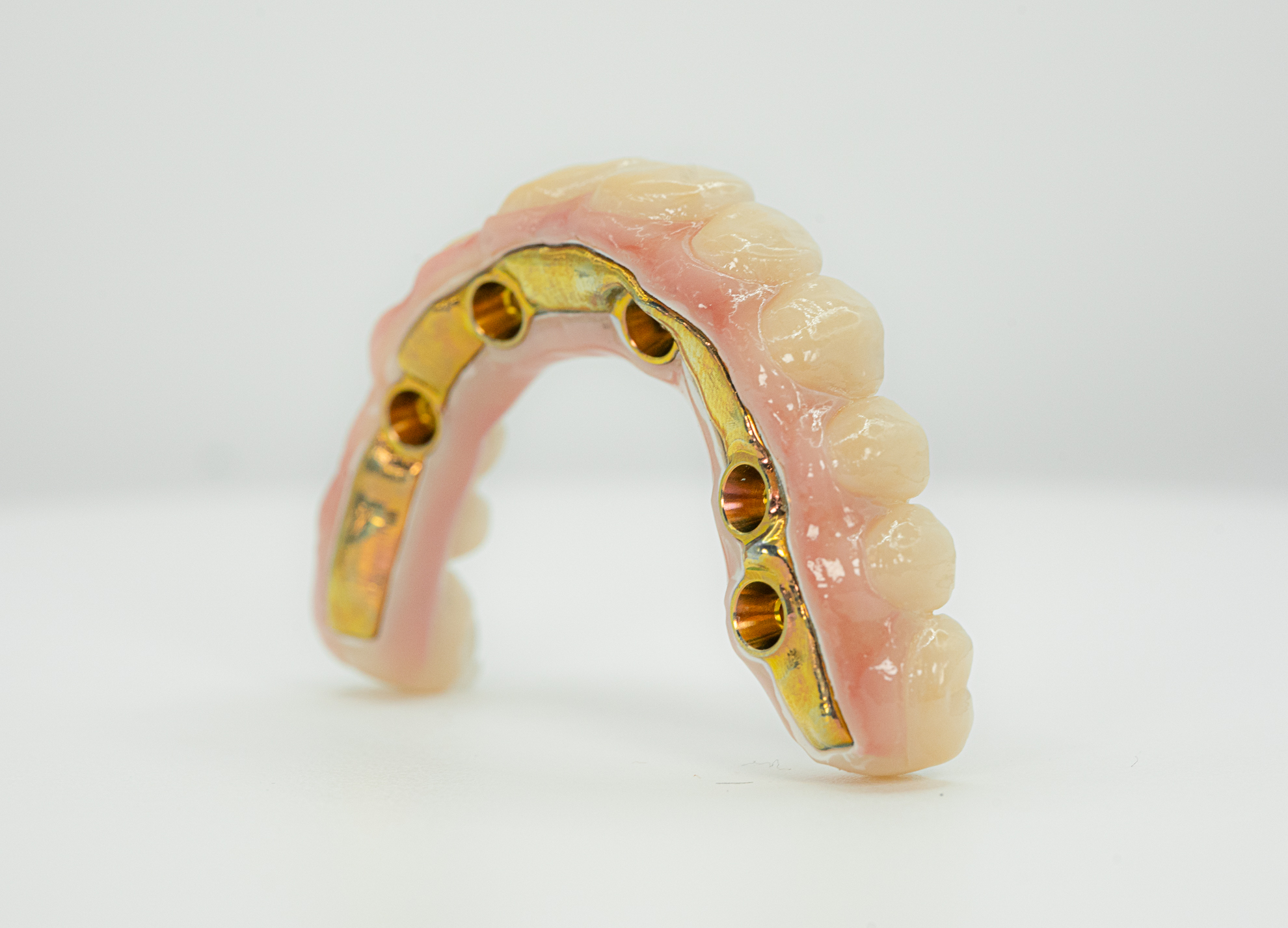

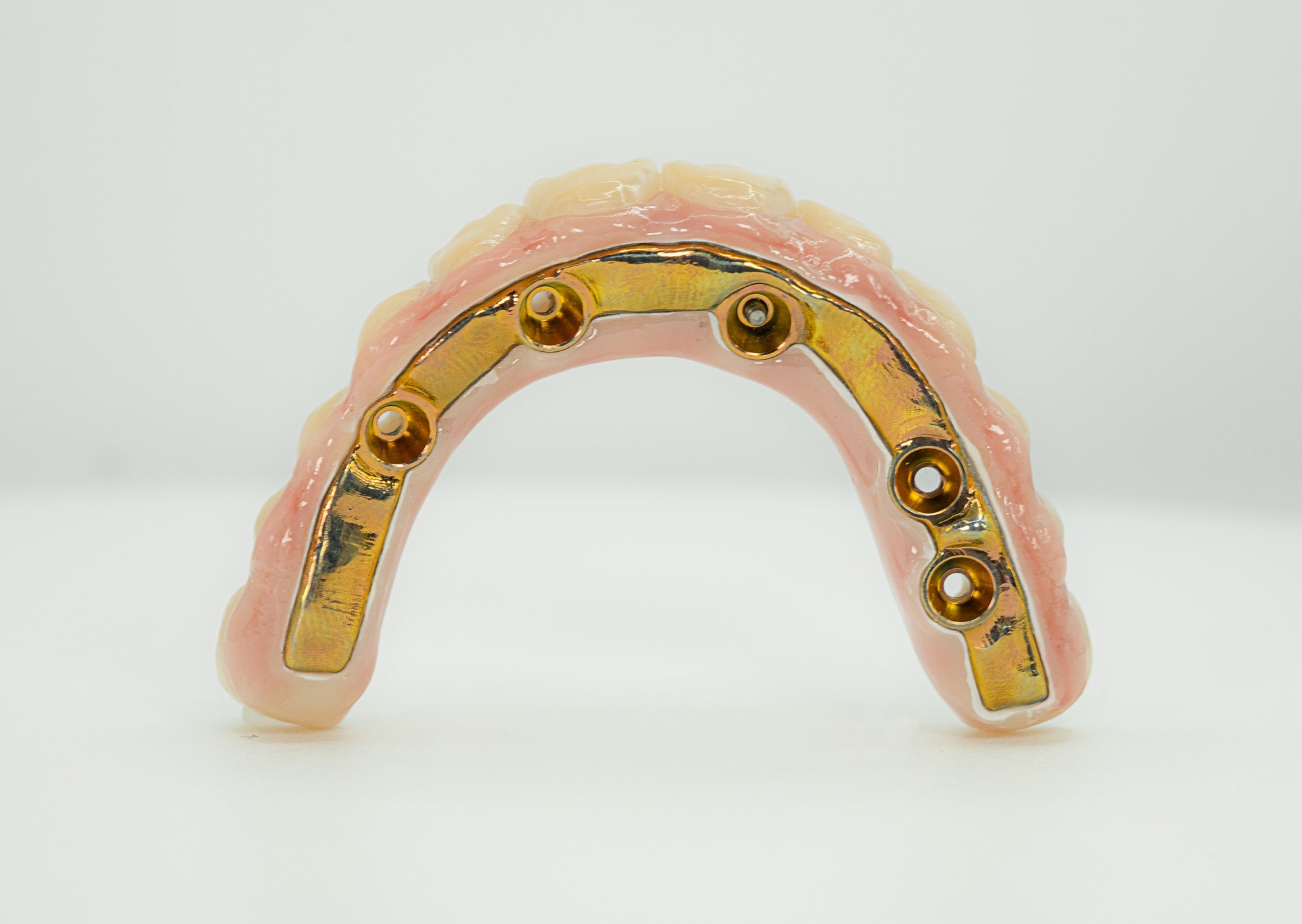

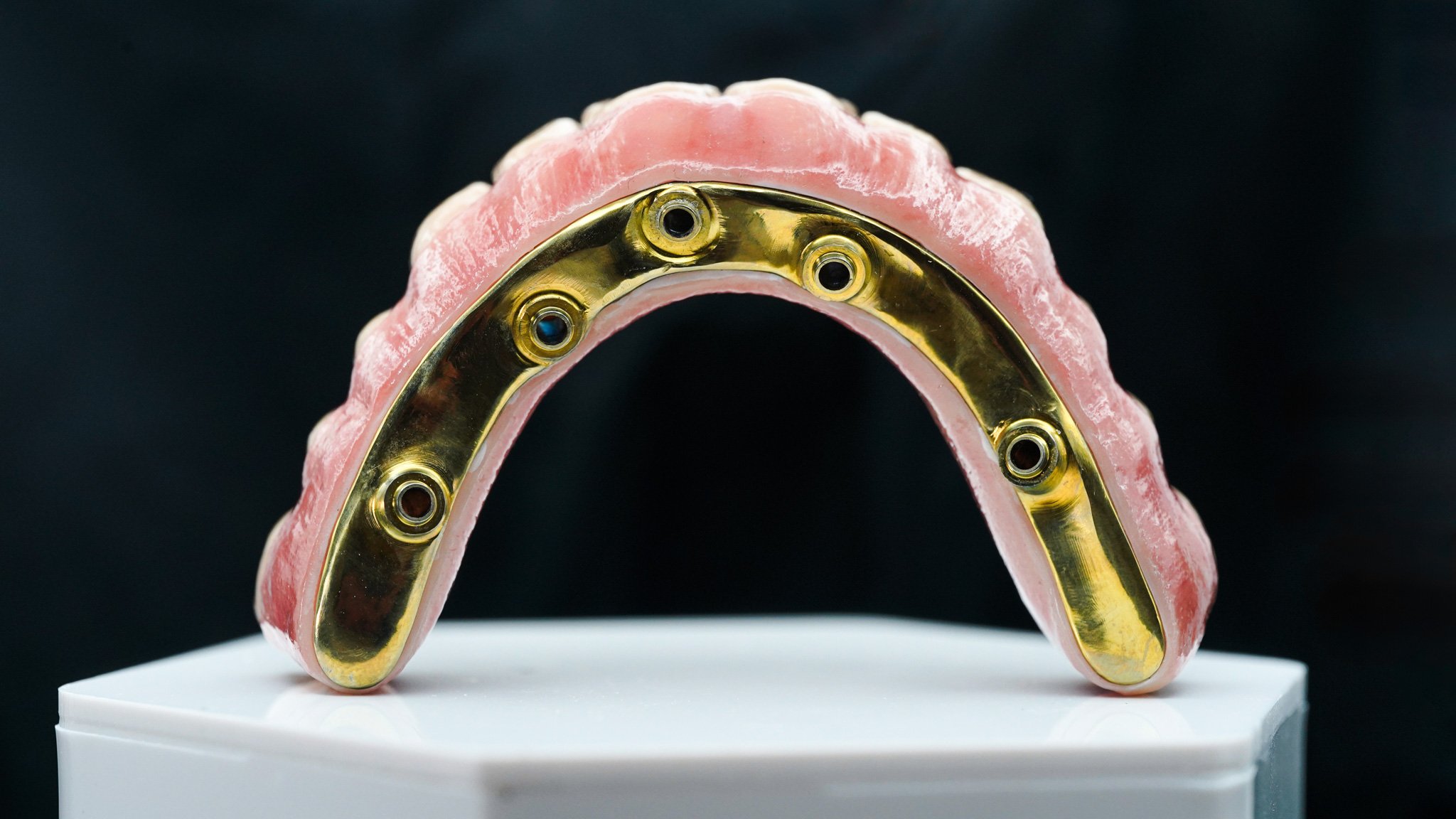

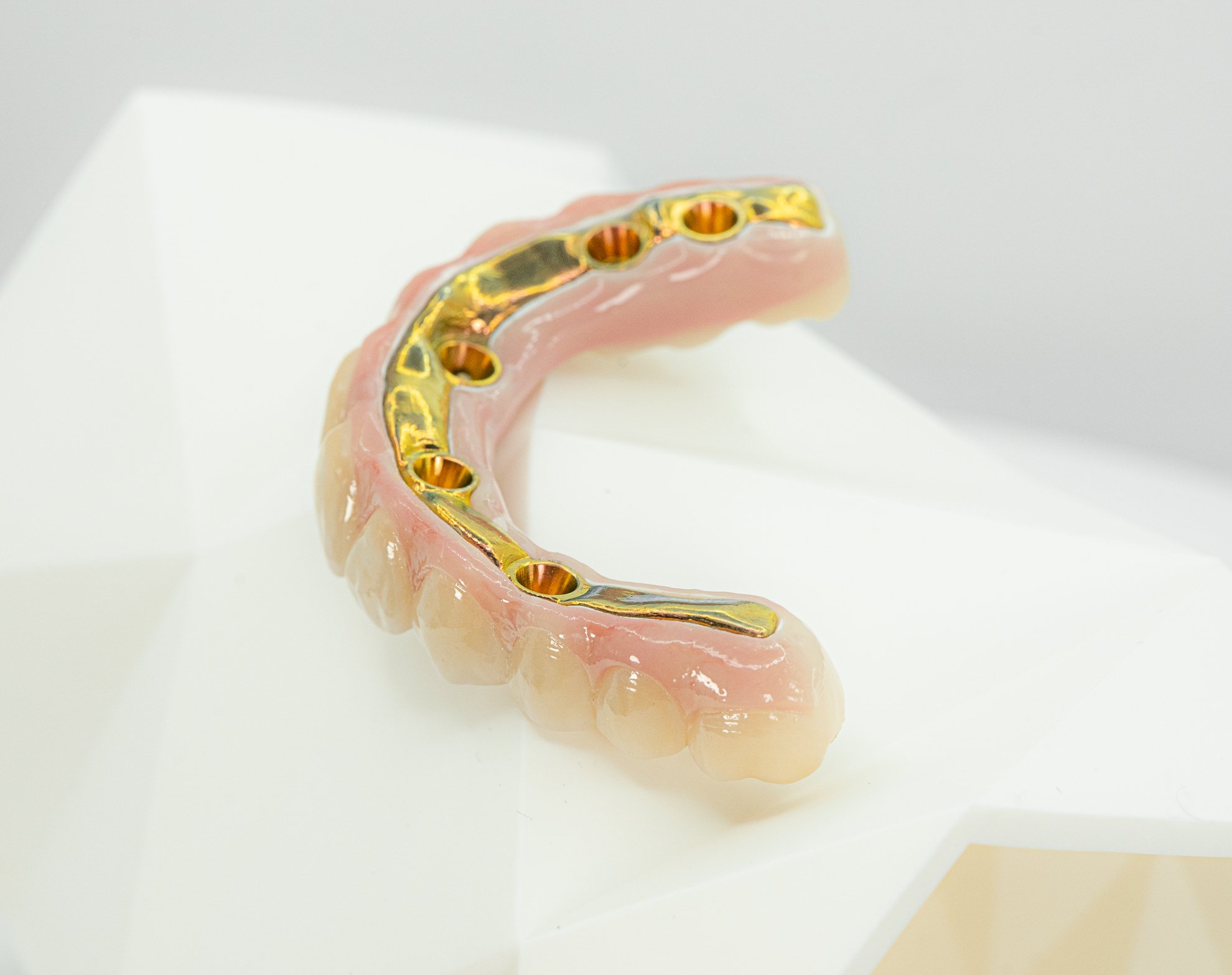

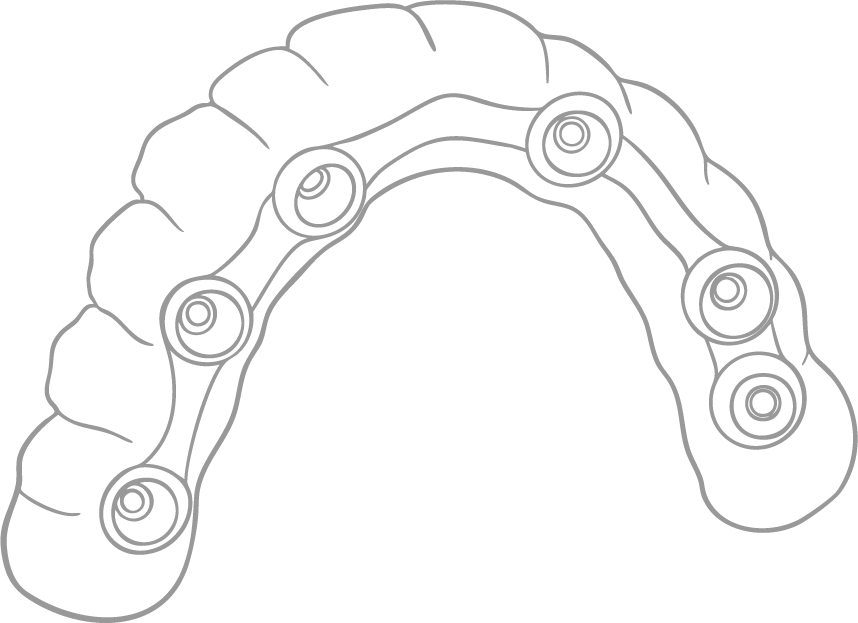

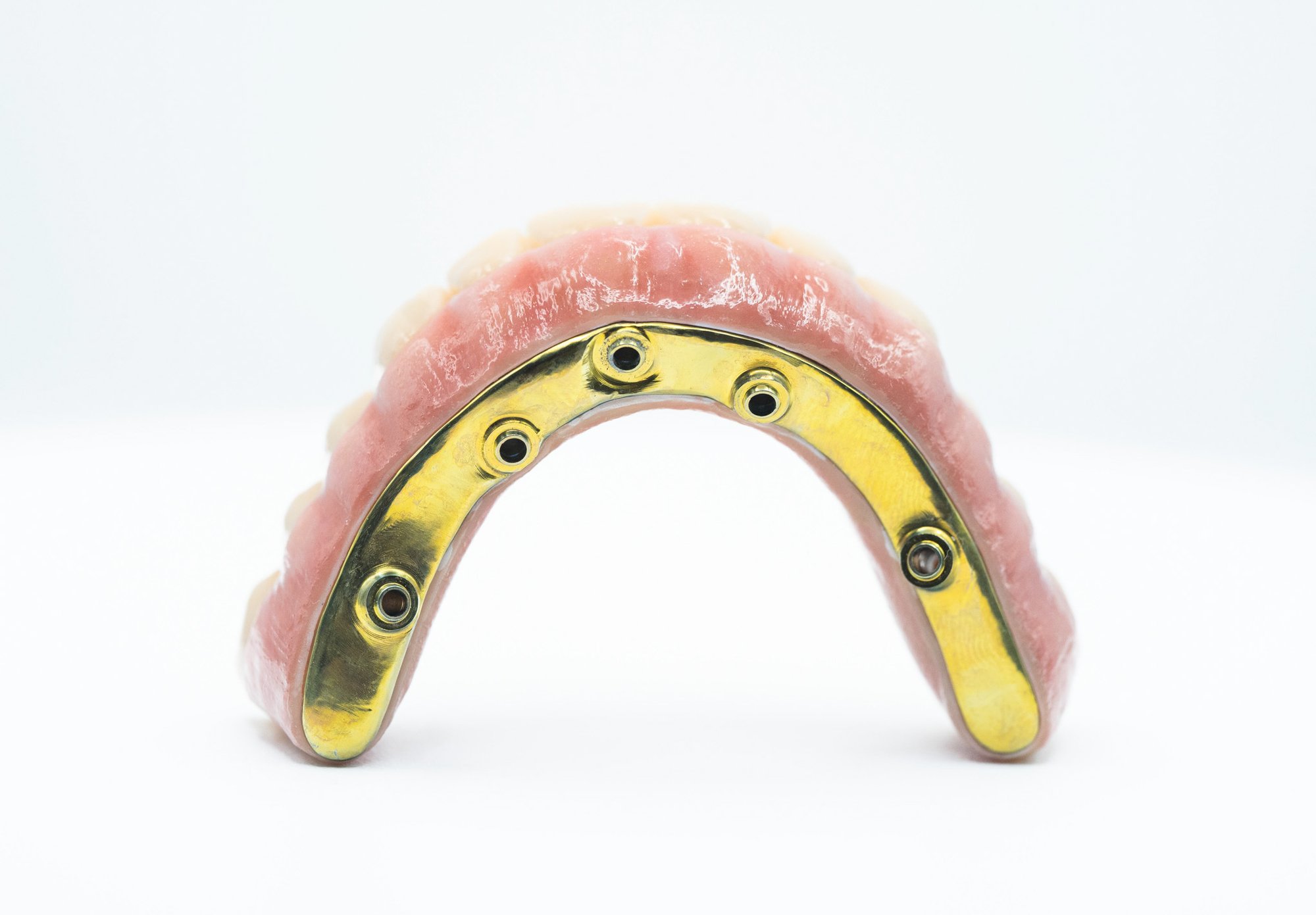

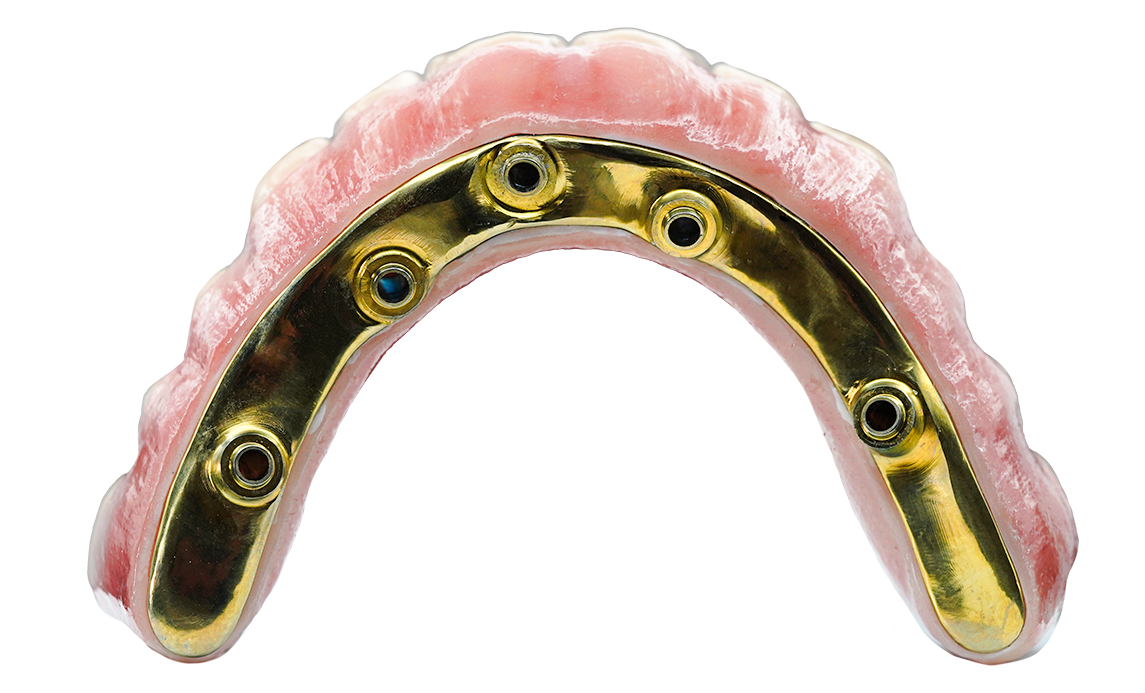

Full contour zirconia with a titanium bar direct to implant. This design add strength to the restoration, especially when space is at a premium. There are less parts due to direct-to-implant engagement of the bar, which means less variables and higher strength. There are minimum space requirements. Generally no less than 10mm’s from the implant to the screw exit point. This design is esthetic, strong, and a wonderful alternative to the traditional zirconia hybrid.

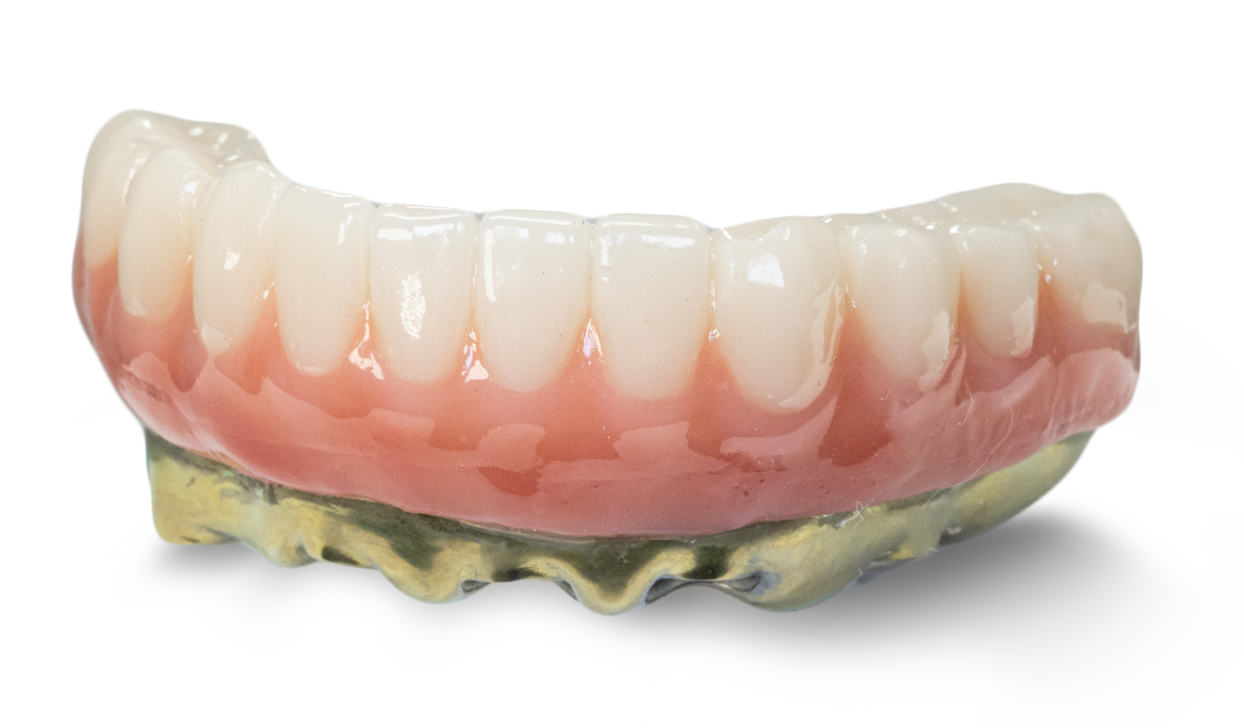

TLZ-IB with Titanium Substrate

11 Days

Lab Working Time

Got Questions?

Click here to begin

ROE offers a versatile selection of full-arch prosthetics. Learn about our Ultra Nano range of prosthetics (with substructure options), as well as our range of TLZ-IB prosthetics. We even offer patients a unique guard to help protect their full arch investment.

Subscribe to ROE’s YouTube channel for new video notifications

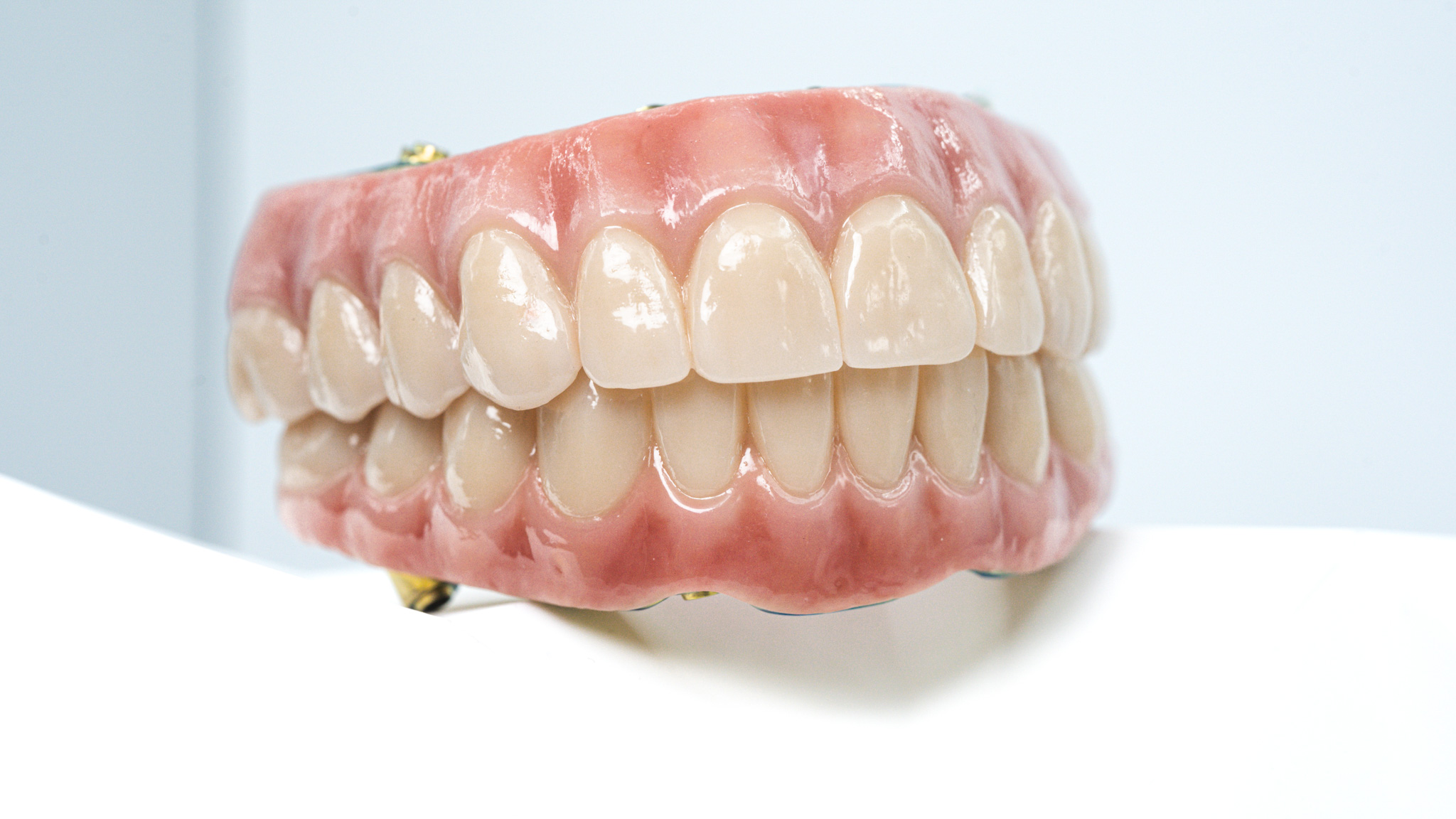

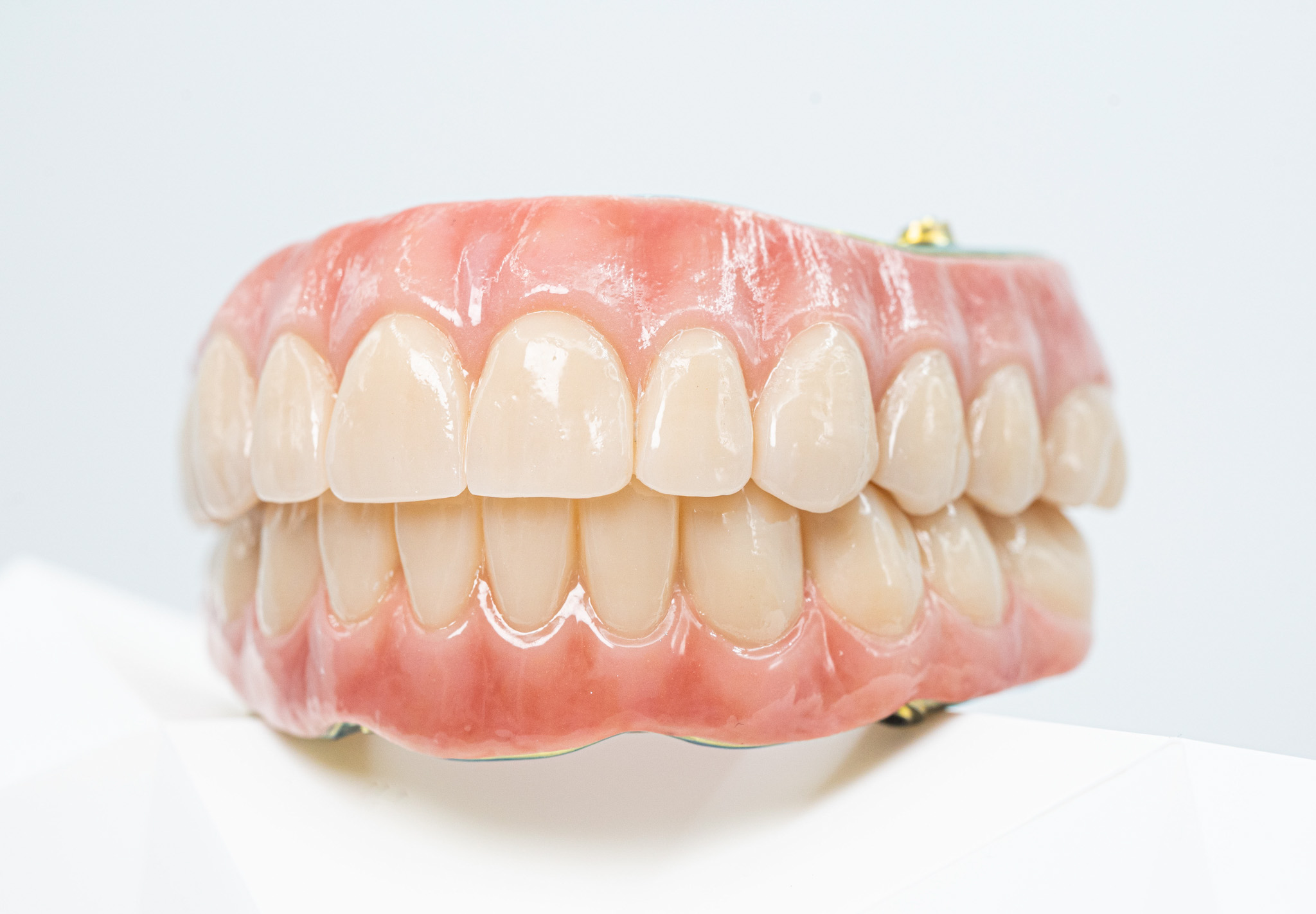

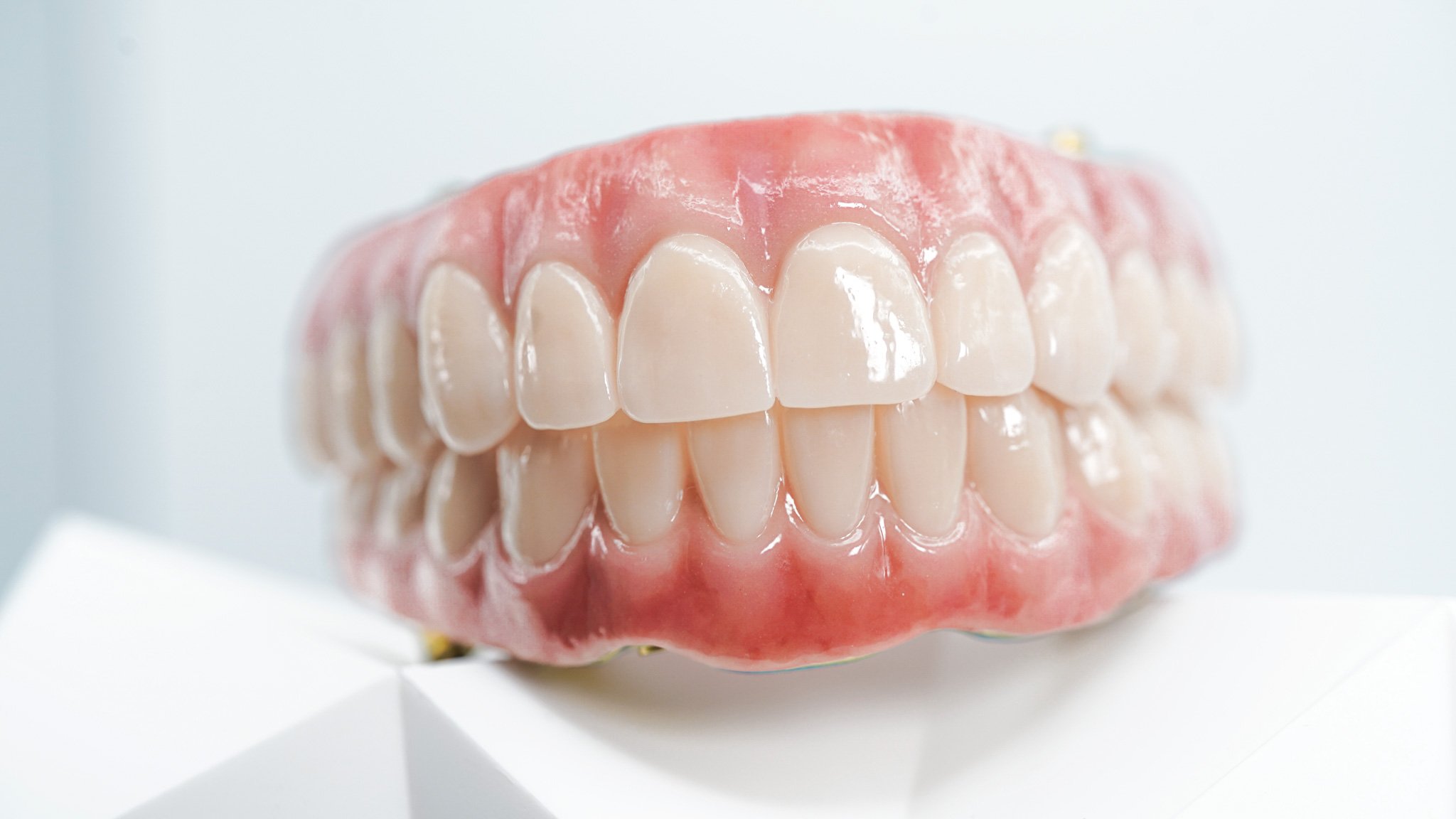

The TLZ-IB, with titanium substrate, is one of the full arch fixed options ROE offers. This option has exceptional strength due to the zirconia-titanium construct. It’s beautiful due to the design, and skilled application of the MiYo liquid ceramic. It is exceptionally accurate due to the direct-to-implant engagement of the titanium bar.

Subscribe to ROE’s YouTube channel for new video notifications

Additional Information

Continuing Education

There are no CE events on this subject scheduled at this time. Sign up to get updates on upcoming events that we are holding, sponsoring or attending. Stay in the know!

Product Comparison

Review our Full Arch Fixed Offerings

  • Application

    Application
  • Substructure

    Substructure
  • Materials

    Materials
  • Process

    Process
  • Prosthetic Design

    Prosthetic Design
  • Minimum Vertical space

    Minimum Vertical space
  • No. of Patient Visits

    No. of Patient Visits
  • Quality of Esthetics

    Quality of Esthetics
  • Wear

    Wear
  • Price

    Price
TLZ-IB
  • Application

    All patient types
  • Substructure

    Full Zirconia
  • Materials

    • Full zirconia
    • Miyo liquid porcelain
    • Ti cylinders
  • Process

    • Submit flask or duplicate prosthetic
    • Prototype Try-in
    • Final
  • Prosthetic Design

    FP3/FP2/FP1
  • Minimum Vertical space

    12mm
  • No. of Patient Visits

    3 to 6
  • Quality of Esthetics

    ★★★★★
  • Wear

    ★★★★★
  • Price

    $$$$
TLZ-IB
with Ti substructure
  • Application

    • Extra strength needed
    • Less than 9-10mm space
  • Substructure

    Titanium
  • Materials

    • Full zirconia
    • Miyo liquid porcelain
    • Titanium substructure
  • Process

    • Submit flask or duplicate prosthetic
    • Prototype Try-in
    • Final
  • Prosthetic Design

    FP3
  • Minimum Vertical space

    10mm
  • No. of Patient Visits

    3 to 6
  • Quality of Esthetics

    ★★★★
  • Wear

    ★★★★★
  • Price

    $$$$$
Ultra Nano
  • Application

    • All, except heavy bruxers
    • Light weight
  • Substructure

    Trilor or Titanium
  • Materials

    • Crystal Ultra teeth with Trilor Bar
    • Titanium cylinders
  • Process

    • Submit flask or duplicate prosthetic
    • Prototype Try-in
    • Final
  • Prosthetic Design

    FP3
  • Minimum Vertical space

    15mm
  • No. of Patient Visits

    3 to 6
  • Quality of Esthetics

    ★★★★★
  • Wear

    ★★★★
  • Price

    $$$$
Traditional Hybrid
  • Application

    • To match existing hybrid
    • Low bruxing clenching patients
  • Substructure

    Titanium Bar
  • Materials

    • Denture teeth
    • Processed acrylic
    • Titanium bar
  • Process

    • Custom Tray
    • Bite block fit jig
    • Set-up
    • Set-up on bar
    • Final
  • Prosthetic Design

    FP3
  • Minimum Vertical space

    17mm
  • No. of Patient Visits

    5 to 7
  • Quality of Esthetics

    ★★★★
  • Wear

    ★★★
  • Price

    $$$$

External Resources

Prosthodontic Classification

TypeFixed/RemovableDescription
FP1
Fixed prosthesisReplaces only the clinical crown; looks like a natural tooth.
FP2Fixed prosthesisReplaces the crown and a portion of the root; crown contour appears normal in the occlusal half but is elongated or hypercontoured in the gingival half.
FP3Fixed prosthesisReplaces missing crowns and gingival color and portion of the edentulous site; prosthesis most often uses denture teeth and acrylic gingiva, but maybe porcelain to metal, or zirconia.
RP4Removable prosthesisOverdenture that is completely implant-supported, no soft tissue support.
RP5Removable prosthesisOverdenture supported by both soft tissue (primary) and implant (secondary). The primary stress-bearing areas are maintained in the prosthesis (maxilla—residual ridge and horizontal palate; mandible— the line should not begin with a dash. Please move the elements on the last two lines to ensure this doesn’t happen. buccal shelf)

From Misch CE. Bone classification training keys. Dent Today. 1989;8:39-44.
